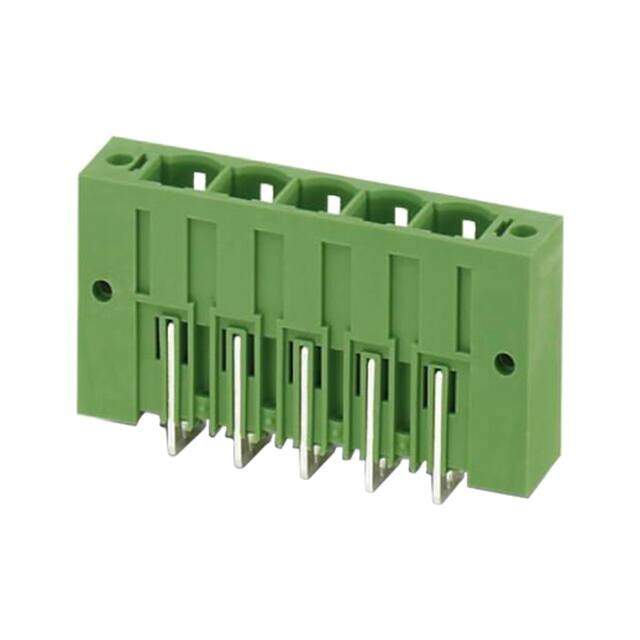

1998881
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 10.16mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $7.87
Unit Price: USD $7.8672
≥1 USD $7.8672
Inventory: 78
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 13.4mm
Height 34mm
Technical
Header Orientation Vertical
Number of Ways 4
Current - UL 66A
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Silver
Current 5A
Number of Levels 1
Contact Tail Length 0.157 4.00mm
Voltage 600V
Termination Style Solder
Current Rating 76A
Insulation Height 1.339 34.00mm
Pitch 0.400 10.16mm
Voltage - Rated 1kV
Number of Rows 1
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON PCV
Published 2011
Packaging Bulk
Physical
Weight 21.480008g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
