RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

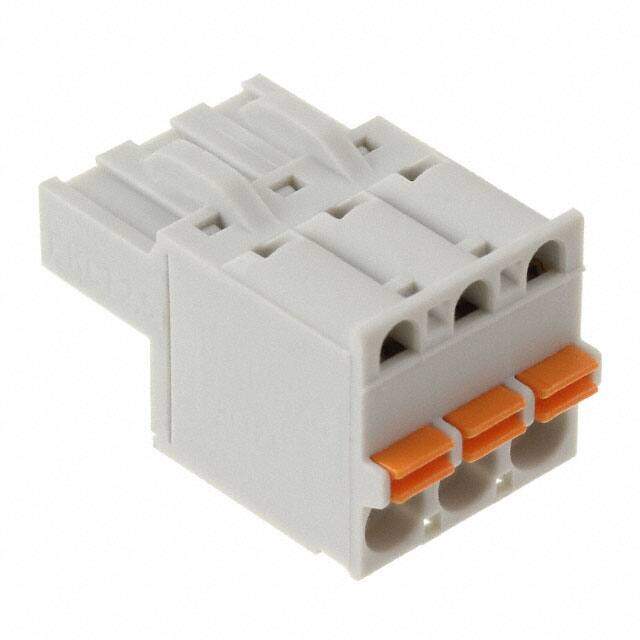

Description Socket enclosure - cable FKCT Total number of pins 3 Phoenix Contact 1998263 Contact spacing: 5 mm 100 pc(s)
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.596
≥1 USD $2.596
Inventory: 240
Minimum: 1
-
+

Technical Details

Technical

Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Current 10A
Number of Levels 1
Voltage 300V
Housing Color Grey
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Color Gray
Number of Positions 3
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON FKCT
Published 2010
Packaging Bulk

Dimensions

Height 15.1mm
Length 15mm
Width 25.6mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0

Physical

Weight 4.869994g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
