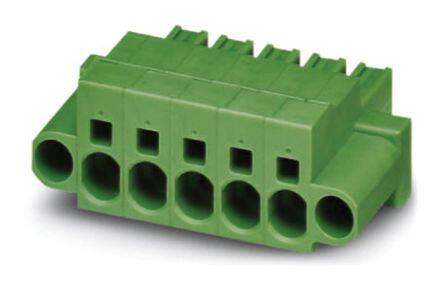

1996207
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Buying Options
Total Price: USD $41.62
Unit Price: USD $41.624182
≥1 USD $41.624182
≥200 USD $16.608185
≥500 USD $16.054141
≥1000 USD $15.779745
Inventory: 1175
Minimum: 1
-
+
Technical Details
Technical
Current Rating 41A
Insulation Height 0.780 19.80mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON SPC
Published 2011
Packaging Bulk
Fastening Method SPRING LOADED
Number of Positions Per Level 10
Current - IEC 41A
Wire Strip Length 15mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 10
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 24 AWG
Current 35A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Push-In Spring
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
