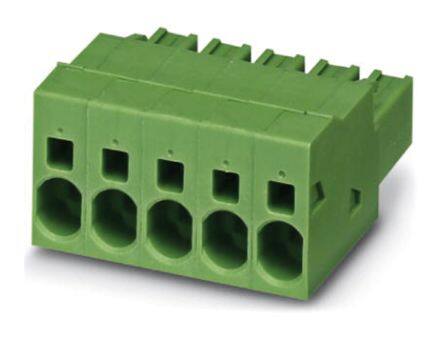

1996074
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Inventory: 5163
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
Technical
Packaging Bulk
Published 1998
Series COMBICON SPC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.300 7.62mm
Insulation Height 0.780 19.80mm
Current Rating 41A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 35A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 1kV
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 15mm
Current - IEC 41A
Number of Positions Per Level 8
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
