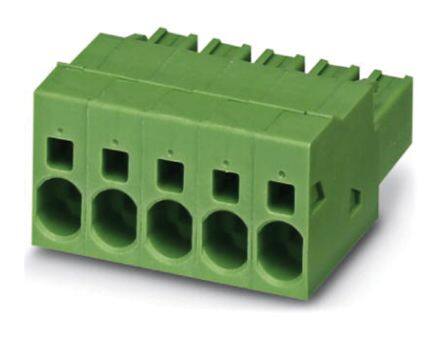

1996058 image
Favorite
1996058 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 6 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Buying Options
Total Price: USD $10.23
Unit Price: USD $10.2344
≥1 USD $10.2344
≥10 USD $9.9572
≥100 USD $9.306
≥500 USD $8.56152
≥1000 USD $7.910109
≥3000 USD $7.537886
Inventory: 78
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Fastening Method SPRING LOADED
Wire Strip Length 15mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 6
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 8 AWG
Current 35A
Number of Levels 1
Max Current Rating 41A
Voltage 600V
Number of Contacts 6
Termination Style Screwless - Push-In Spring
Current Rating 41A
Insulation Height 0.780 19.80mm
Orientation Straight
Pitch 0.300 7.62mm
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Number of Positions 6
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON SPC
Published 2011
Packaging Bulk

Physical

Weight 749.788188g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
