RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

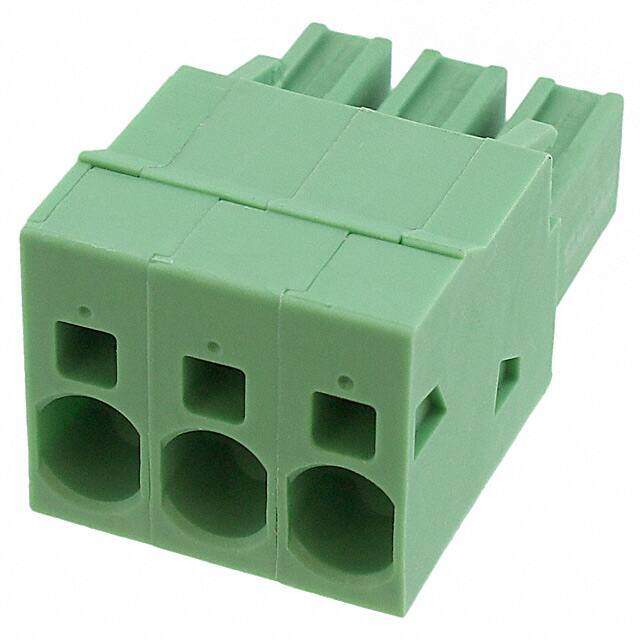

Description Pluggable Terminal Blocks 3 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Buying Options
Total Price: USD $6.69
Unit Price: USD $6.688
≥1 USD $6.688
≥10 USD $6.50848
≥100 USD $6.08256
≥500 USD $5.596008
≥1000 USD $5.170176
≥3000 USD $4.926891
Inventory: 150
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 38.5mm
Length 19.8mm
Height 22.86mm

Technical

Fastening Method SPRING LOADED
Current - IEC 41A
Wire Strip Length 15mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Number of Poles 3
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 8 AWG
Current 35A
Number of Levels 1
Voltage 600V
Approval Agency UL, cULus
Termination Style Screwless - Push-In Spring
Current Rating 41A
Reach Compliance Code unknown
Insulation Height 0.780 19.80mm
Depth 19.8mm
Orientation Straight
Pitch 0.300 7.62mm
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON SPC
Published 1998
Packaging Bulk

Physical

Weight 1.200205kg
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
