1996016
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

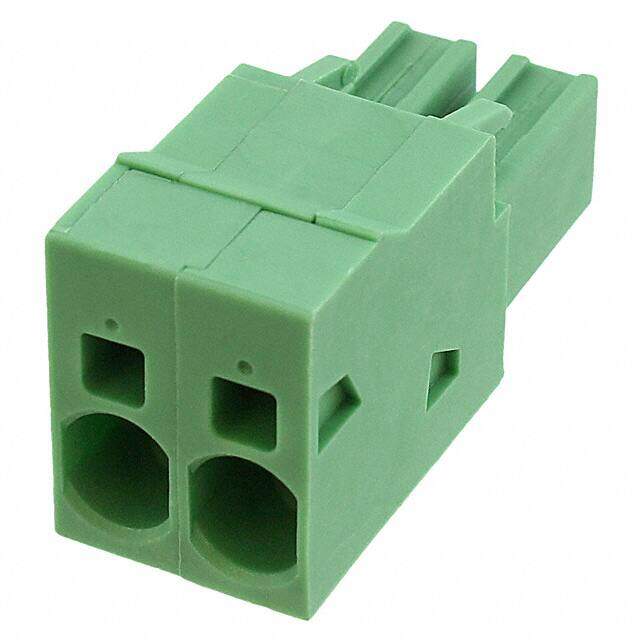

Pluggable Terminal Blocks 2 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.4992
≥1 USD $2.4992
Inventory: 263
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 38.5mm
Length 15.24mm
Height 19.8mm
Technical
Fastening Method SPRING LOADED
Current - IEC 41A
Wire Strip Length 15mm
Wire Gauge or Range - mm2 0.2-10mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 2
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-24 AWG
Number of Decks 1
Number of Poles 2
Wire Gauge (Min) 8 AWG
Wire Gauge (Max) 24 AWG
Current 35A
Number of Levels 1
Voltage 600V
Approval Agency UL, cULus
Termination Style Screwless - Push-In Spring
Current Rating 41A
Reach Compliance Code unknown
Insulation Height 0.780 19.80mm
Depth 19.8mm
Orientation Straight
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON SPC
Published 1998
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
