RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

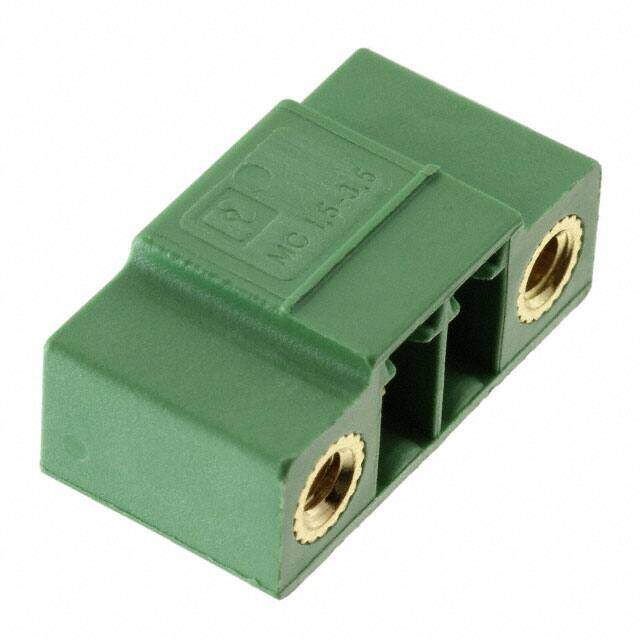

Description Conn Wire to Board HDR 2 POS 3.5mm
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.2088
≥1 USD $2.2088
≥10 USD $2.15248
≥100 USD $2.01168
≥500 USD $1.850728
≥1000 USD $1.816109
Inventory: 176
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Header Orientation 90°, Right Angle
Voltage - IEC 250V
Contact Mating Finish Gold
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.285 7.25mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Male
Color Green
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON MC
Published 2017
Packaging Bulk

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
