1995635
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

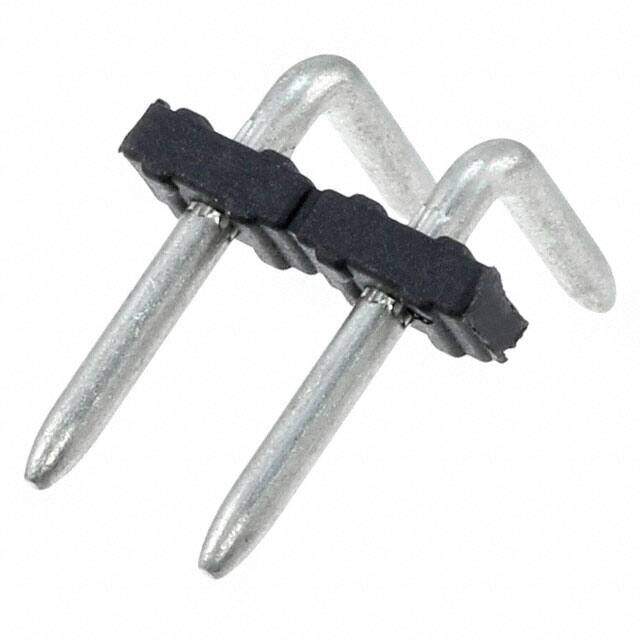

Headers & Wire Housings 2 Pos 5mm pitch Thru Hole Pin Strip
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.2552
≥100 USD $0.243936
≥500 USD $0.237248
≥1000 USD $0.22176
≥3000 USD $0.204019
Inventory: 284
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON PST
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Unshrouded
Number of Positions 2
Color Black
Voltage - Rated 250V
Pitch 0.197 5.00mm
Insulation Height 0.110 2.79mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.266 6.75mm
Number of Levels 1
Current 16A
Contact Mating Finish Tin
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
