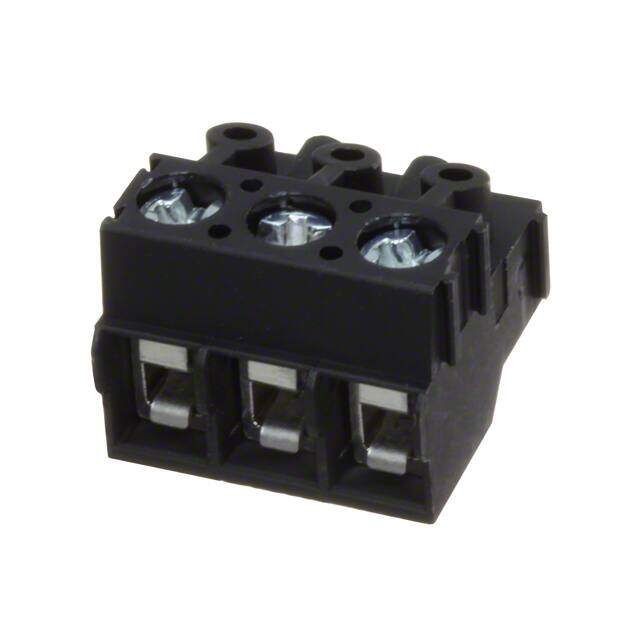

1987261 image
Favorite
1987261 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.60104
≥100 USD $0.574992
≥500 USD $0.559328
≥1000 USD $0.52272
≥3000 USD $0.480902
Inventory: 319
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 15mm
Length 11.3mm
Height 14.9mm

Technical

Screw Size M2.6
Wire Strip Length 5mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 14 AWG
Current 15A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.449 11.40mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Color Black
Number of Positions 3
Type Plug for Unshrouded Header
Connector Type Screw, Socket
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PT
Published 2010
Packaging Bulk

Physical

Weight 3.409994g
Housing Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 18 Weeks
