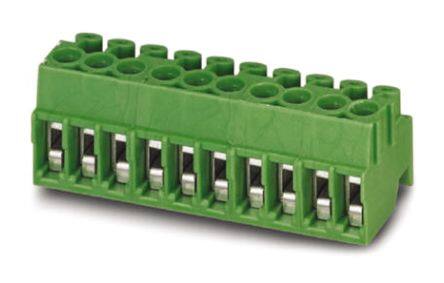

1984387
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 3.5mm pitch Plug 26-14 AWG Screw
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.252982
≥1 USD $2.252982
≥10 USD $2.125452
≥100 USD $2.005148
≥500 USD $1.891644
≥1000 USD $1.784576
Inventory: 969
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 5.759999g
Technical
Packaging Bulk
Published 2011
Series COMBICON PT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug for Unshrouded Header
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Pitch 0.138 3.50mm
Depth 11mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 26 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 16-26 AWG
Voltage - IEC 400V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 9
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 5mm
Current - IEC 8A
Number of Positions Per Level 9
Screw Size M2
Dimensions
Height 11mm
Length 12.9mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
