1984345
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

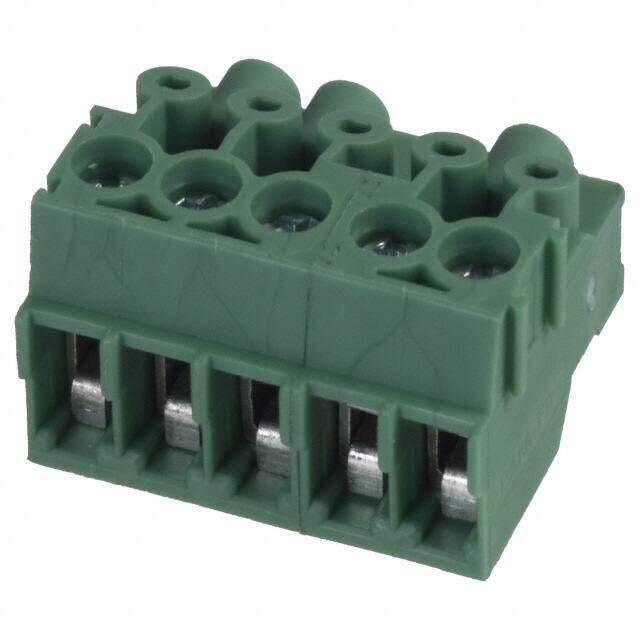

Pluggable Terminal Blocks 5 Pos 3.5mm pitch Plug 26-14 AWG Screw
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.342
≥100 USD $1.30504
≥500 USD $1.21968
≥1000 USD $1.122106
≥3000 USD $1.101091
Inventory: 223
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 17.5mm
Length 12.9mm
Height 11mm
Technical
Screw Size M2
Number of Positions Per Level 5
Wire Strip Length 5mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 5
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 400V
Wire Gauge or Range - AWG 16-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 200V
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Depth 12.9mm
Orientation Straight
Pitch 0.138 3.50mm
Additional Feature PA, UL 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug for Unshrouded Header
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2005
Packaging Bulk
Physical
Weight 3.219996g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 4 Weeks
