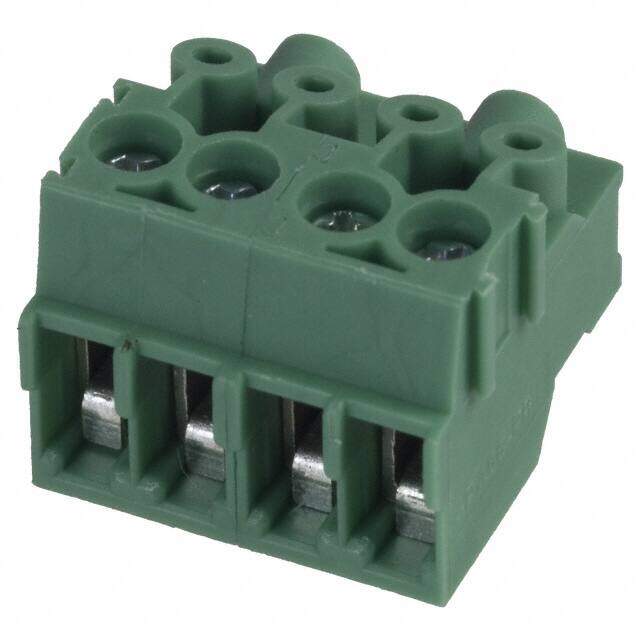

1984332
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 3.5mm pitch Plug 26-14 AWG Screw
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $1.09296
≥100 USD $1.04544
≥500 USD $1.016928
≥1000 USD $0.9504
≥3000 USD $0.874368
Inventory: 453
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 14mm
Length 12.9mm
Height 11mm
Technical
Screw Size M2
Number of Positions Per Level 4
Wire Strip Length 5mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 4
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 400V
Wire Gauge or Range - AWG 16-26 AWG
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 14 AWG
Current 10A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.437 11.10mm
Depth 12.9mm
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug for Unshrouded Header
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2005
Packaging Bulk
Physical
Weight 2.519989g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
