1984183
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

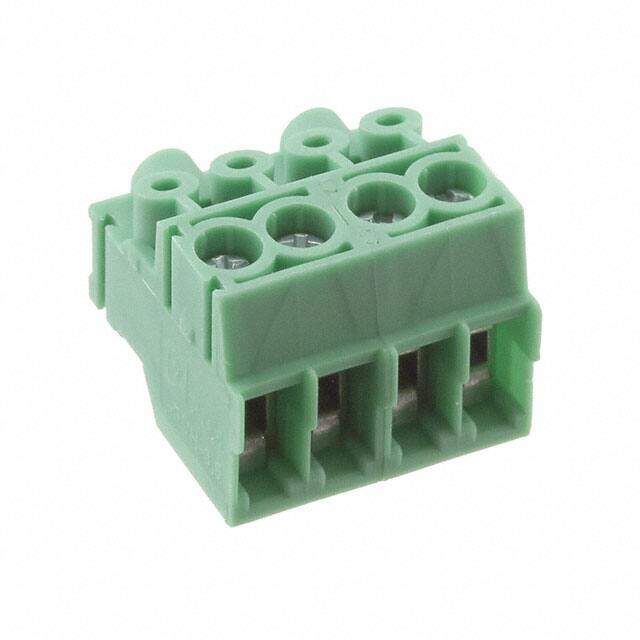

Pluggable Terminal Blocks 4 Pos 3.5mm pitch Plug 26-14 AWG Screw
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.67408
≥100 USD $0.644688
≥500 USD $0.627088
≥1000 USD $0.58608
≥3000 USD $0.539194
Inventory: 384
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 165.000008g
Technical
Packaging Bulk
Published 2010
Series COMBICON PT
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug for Unshrouded Header
Color Green
Gender Female
Voltage - Rated 160V
Pitch 0.138 3.50mm
Depth 11mm
Insulation Height 0.433 11.00mm
Reach Compliance Code not_compliant
Current Rating 6A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 26 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 16-26 AWG
Voltage - IEC 400V
Torque - Screw 0.25 Nm (2.2 Lb-In)
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 5mm
Current - IEC 6A
Number of Positions Per Level 4
Screw Size M2
Dimensions
Length 14.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
