RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

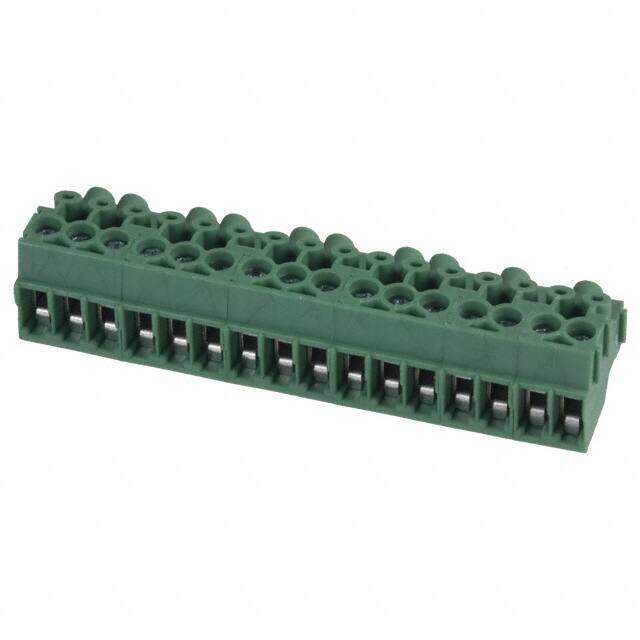

Description TERM BLOCK PLUG 16POS 3.5MM
PDF
/
Buying Options
Total Price: USD $3.61
Unit Price: USD $3.608
≥1 USD $3.608
≥10 USD $3.50856
≥100 USD $3.27888
≥500 USD $3.016552
≥1000 USD $2.960109
Inventory: 281
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 56mm
Length 14.6mm
Height 11mm

Technical

Screw Size M2
Wire Strip Length 5mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90° and 180°
Safety Approval UL
Number of Ways 16
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 400V
Wire Gauge or Range - AWG 16-26 AWG
Number of Decks 1
Wire/Cable Gauge 16 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 14 AWG
Current 10A
Number of Levels 1
Max Current Rating 8A
Voltage 300V
Number of Contacts 16
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.437 11.10mm
Orientation Right Angle/Straight
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 16
Type Plug for Unshrouded Header
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2005
Packaging Bulk

Physical

Weight 10.699989g
Housing Material Polyamide (PA), Nylon
Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 11 Weeks
