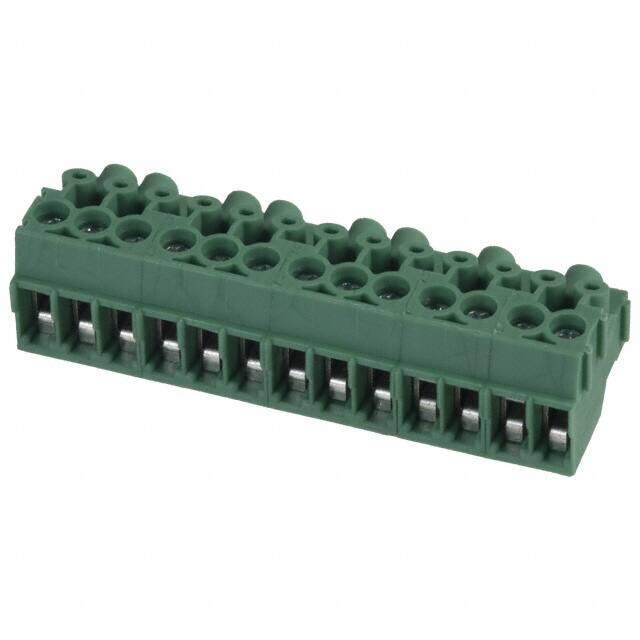

1984125
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 13POS 3.5MM
PDF
/
Buying Options
Total Price: USD $3.29
Unit Price: USD $3.291721
≥1 USD $3.291721
≥10 USD $3.105393
≥100 USD $2.929614
≥500 USD $2.76379
≥1000 USD $2.607352
Inventory: 2480
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Free Hanging, Through Hole
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 8.699987g
Technical
Packaging Bulk
Published 2005
Series COMBICON PT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug for Unshrouded Header
Number of Positions 13
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Orientation Right Angle/Straight
Depth 14.6mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Wire/Cable Gauge 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-26 AWG
Voltage - IEC 400V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 13
Safety Approval UL
Plug Wire Entry 90° and 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 5mm
Screw Size M2
Dimensions
Height 11mm
Length 14.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
