1984109
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

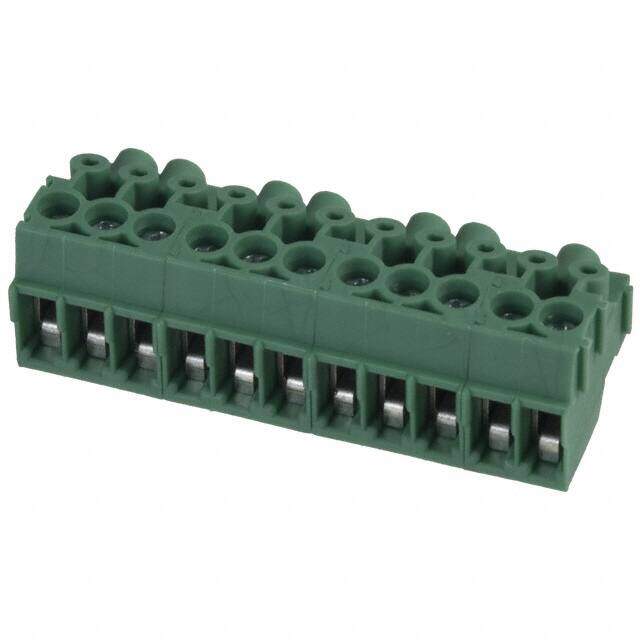

TERM BLOCK PLUG 11POS 3.5MM
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.1032
≥1 USD $2.1032
Inventory: 116
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 14.6mm
Length 38.5mm
Height 11mm
Technical
Stripping Length 5mm
Screw Size M2
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90° and 180°
Safety Approval UL
Number of Ways 11
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 400V
Wire Gauge or Range - AWG 16-26 AWG
Number of Decks 1
Number of Poles 11
Wire/Cable Gauge 16 AWG
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Approval Agency UL
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Depth 14.6mm
Orientation Right Angle/Straight
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug for Unshrouded Header
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2005
Packaging Bulk
Physical
Weight 7.31001g
Housing Material Polyamide (PA), Nylon
Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 11 Weeks
