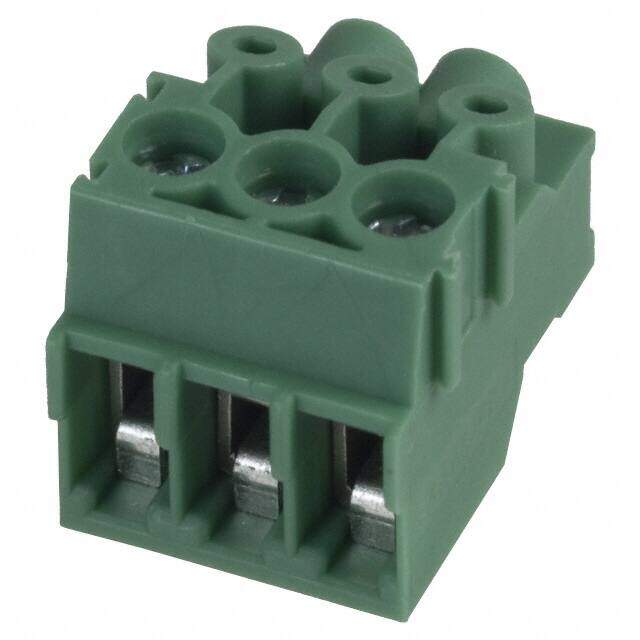

1984028 image
Favorite
1984028 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS 3.5MM
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
Inventory: 26593
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 1.989995g

Technical

Packaging Bulk
Published 2003
Series COMBICON PT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug for Unshrouded Header
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 160V
Pitch 0.138 3.50mm
Orientation Right Angle/Straight
Depth 14.6mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Approval Agency UL
Number of Contacts 3
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 6A
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-26 AWG
Voltage - IEC 400V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 3
Safety Approval UL
Plug Wire Entry 90° and 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Current - IEC 8A
Screw Size M2
Stripping Length 5mm
Test Voltage 2.5kV

Dimensions

Height 11mm
Length 10.5mm
Width 14.6mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
