1975891
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

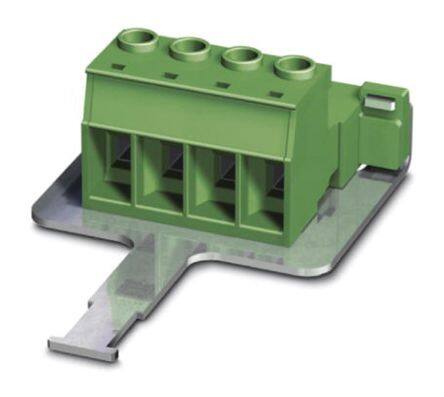

Terminal Block Plug
PDF
/
Inventory: 1073
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 99.999994g
Technical
Packaging Bulk
Published 2011
Series COMBICON IPC
Feature Mating Flange, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Current Rating 76A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 55A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Contact Mating Finish Silver
Voltage - UL 600V
Number of Decks 1
Wire Gauge or Range - AWG 6-20 AWG
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 12mm
Current - IEC 76A
Number of Positions Per Level 4
Screw Size M4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
