RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

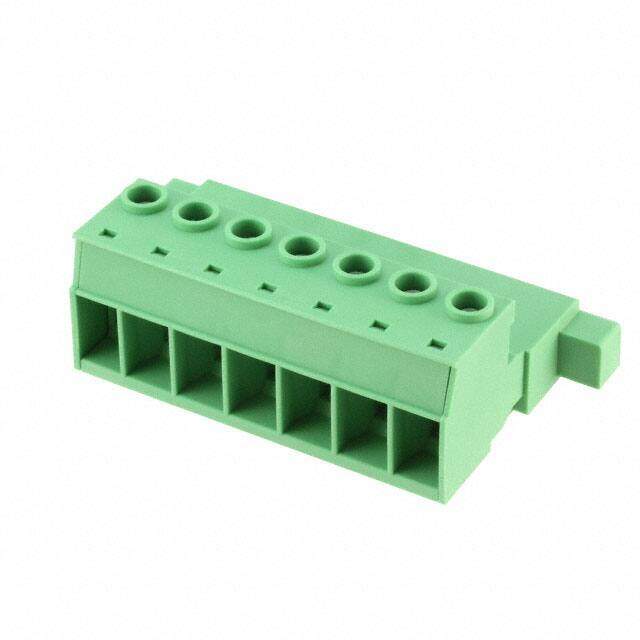

Description Pluggable Terminal Blocks 7 Pos 10.16mm Invert Plug 18-6AWG Screw
PDF
/
Inventory: 1155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Screw Size M4
Number of Positions Per Level 7
Current - IEC 76A
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 7
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Wire Gauge or Range - AWG 6-20 AWG
Number of Decks 1
Voltage - UL 600V
Contact Mating Finish Silver
Wire Gauge (Min) 6 AWG
Wire Gauge (Max) 20 AWG
Current 55A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 76A
Insulation Height 1.094 27.80mm
Pitch 0.400 10.16mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IPC
Published 2011
Packaging Bulk

Physical

Weight 99.999994g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 7 Weeks
