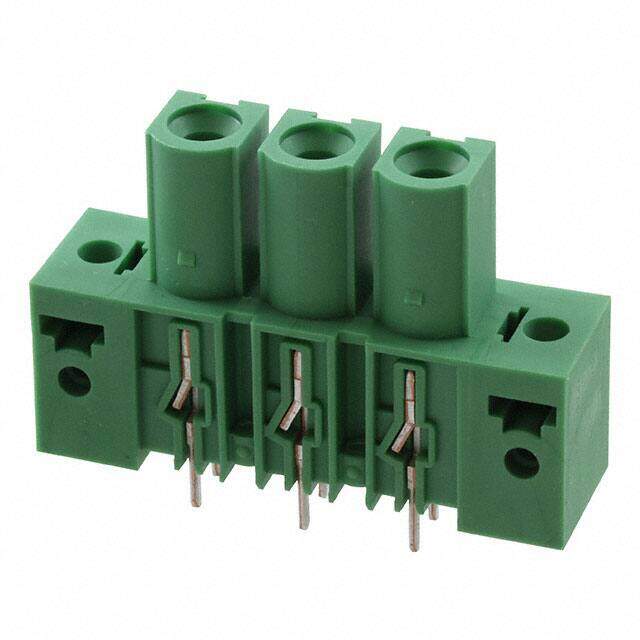

1969784
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Wire to Board HDR 3 POS 10.16mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $13.8
Unit Price: USD $13.7984
≥1 USD $13.7984
≥10 USD $13.42352
≥100 USD $12.54528
≥500 USD $11.541728
≥1000 USD $10.663488
≥3000 USD $10.161712
Inventory: 231
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Silver, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
Technical
Packaging Bulk
Published 2011
Series COMBICON IPCV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.400 10.16mm
Orientation Straight
Insulation Height 1.264 32.10mm
Reach Compliance Code unknown
Current Rating 76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.157 4.00mm
Max Current Rating 76A
Number of Levels 1
Current 5A
Contact Mating Finish Silver
Voltage - UL 300V
Number of Decks 1
Current - UL 66A
Number of Ways 3
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 31.28mm
Length 48.24mm
Width 36.1mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
