1969496
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

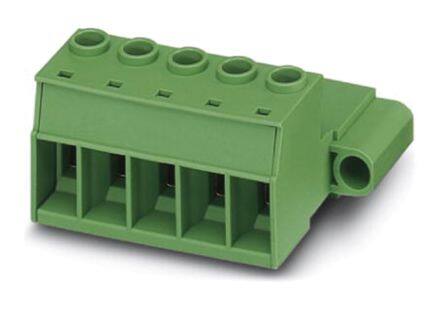

COMBICON IPC RoHS Compliant 2011 Mating Flange Terminal Block Plug, Male Pins UL94V-0 20AWG 180° 55A
PDF
/
Inventory: 9634
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M4
Number of Positions Per Level 6
Current - IEC 76A
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 6
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Wire Gauge or Range - AWG 6-20 AWG
Number of Decks 1
Voltage - UL 600V
Contact Mating Finish Silver
Wire Gauge (Min) 6 AWG
Wire Gauge (Max) 20 AWG
Current 55A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 76A
Insulation Height 1.094 27.80mm
Pitch 0.400 10.16mm
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IPC
Published 2011
Packaging Bulk
Physical
Weight 58.869996g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
