RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

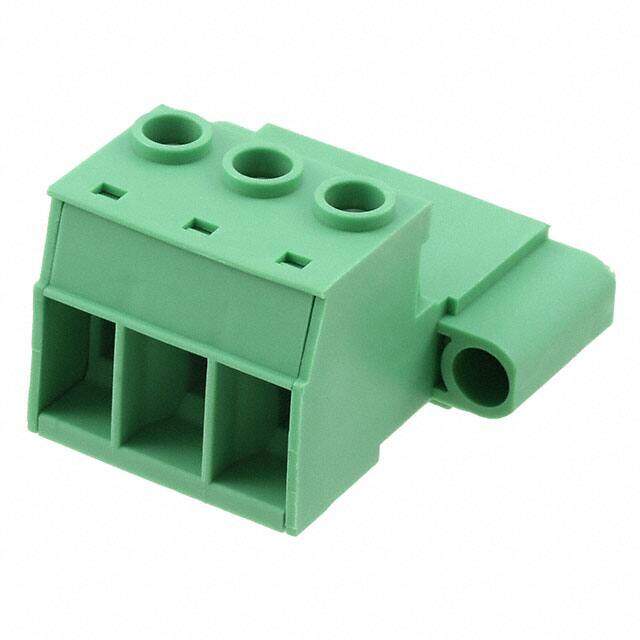

Description Pluggable Terminal Blocks 3 Pos 10.16mm Invert Plug 18-6AWG Screw
PDF
/
Buying Options
Total Price: USD $17.02
Unit Price: USD $17.0192
≥1 USD $17.0192
≥10 USD $16.55896
≥100 USD $15.47568
≥500 USD $14.237696
≥1000 USD $13.154346
≥3000 USD $12.535354
Inventory: 348
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 48.24mm
Length 27.8mm
Height 44.1mm

Technical

Screw Size M4
Number of Positions Per Level 3
Current - IEC 76A
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 3
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 6-20 AWG
Number of Decks 1
Wire Gauge (Min) 6 AWG
Wire Gauge (Max) 20 AWG
Current 55A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 76A
Insulation Height 1.094 27.80mm
Pitch 0.400 10.16mm
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IPC
Published 2010
Packaging Bulk

Physical

Weight 32.049986g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Silver

Supply Chain

Factory Lead Time 4 Weeks
