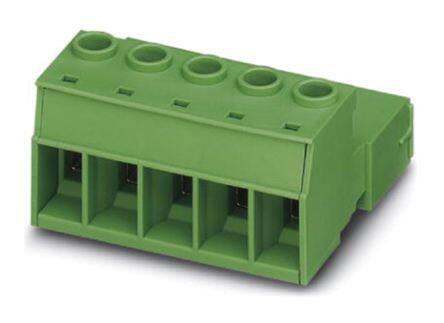

1969438 image
Favorite
1969438 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON IPC RoHS Compliant 2010 Female Terminal Block Plug, Male Pins UL94V-0 20AWG 180° 55A
PDF
/
Buying Options
Total Price: USD $41.29
Unit Price: USD $41.288325
≥1 USD $41.288325
≥10 USD $38.951247
≥100 USD $36.746463
≥500 USD $34.666476
≥1000 USD $32.704221
Inventory: 9612
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 74.159999g

Technical

Packaging Bulk
Published 2010
Series COMBICON IPC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.400 10.16mm
Insulation Height 1.094 27.80mm
Current Rating 76A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 55A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Contact Mating Finish Silver
Screw Size M4
Number of Positions Per Level 8
Current - IEC 76A
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Wire Gauge or Range - AWG 6-20 AWG
Number of Decks 1
Voltage - UL 600V

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
