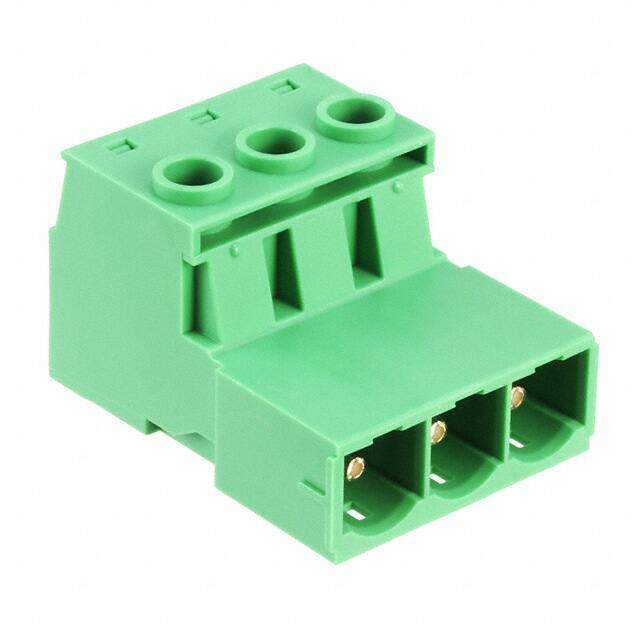

1969386 image
Favorite
1969386 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Blocks F 3 POS 10.16mm Screw RA Cable Mount 76A
PDF
/
Buying Options
Total Price: USD $16.21
Unit Price: USD $16.2096
≥1 USD $16.2096
≥10 USD $15.77048
≥100 USD $14.73912
≥500 USD $13.560008
≥1000 USD $12.528243
≥3000 USD $11.938802
Inventory: 225
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 29.51999g

Technical

Packaging Bulk
Published 2010
Series COMBICON IPC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.400 10.16mm
Orientation Right Angle
Insulation Height 1.094 27.80mm
Current Rating 76A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Max Supply Voltage 1kV
Max Current Rating 76A
Number of Levels 1
Current 55A
Wire Gauge (Max) 6 AWG
Wire Gauge (Min) 18 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 6-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 12mm
Screw Size M4

Dimensions

Length 33.52mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
