1967456
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

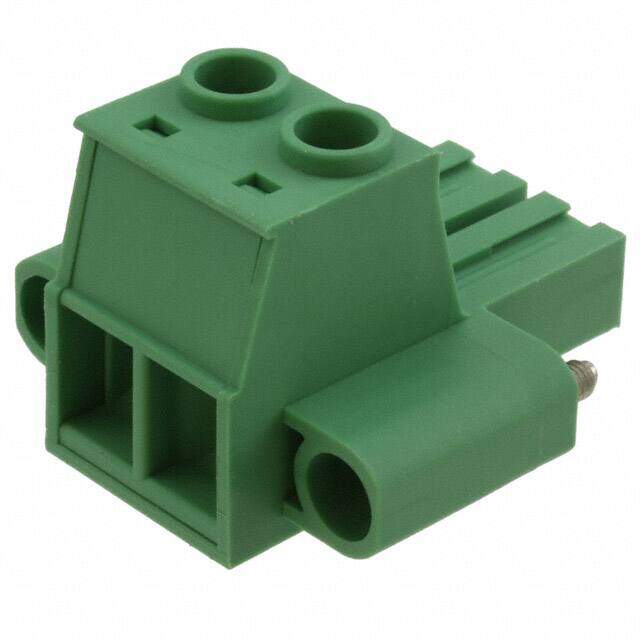

Conn PC Terminal Block F 2 POS 10.16mm Screw RA Panel Mount 76A
PDF
/
Buying Options
Total Price: USD $9.5
Unit Price: USD $9.4952
≥1 USD $9.4952
≥10 USD $9.23736
≥100 USD $8.6328
≥500 USD $7.942176
≥1000 USD $7.337898
≥3000 USD $6.992603
Inventory: 365
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Silver
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 21.700001g
Technical
Packaging Bulk
Published 2004
Series COMBICON PC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Orientation Right Angle
Insulation Height 1.094 27.80mm
Reach Compliance Code unknown
Current Rating 76A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 2
Voltage 600V
Max Current Rating 76A
Number of Levels 1
Current 55A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Wire/Cable Gauge 6 AWG
Number of Decks 1
Wire Gauge or Range - AWG 6-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 12mm
Screw Size M4
Dimensions
Height 38.08mm
Length 27.8mm
Width 41.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
