1967443
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

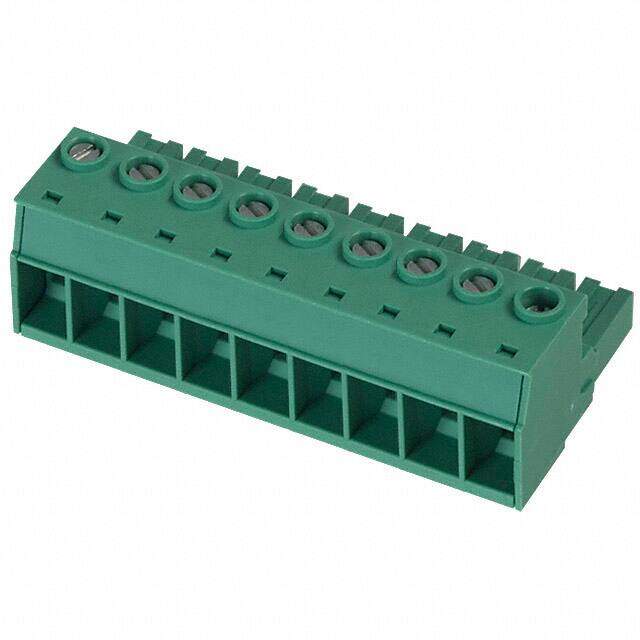

TERM BLOCK PLUG 9POS STR 10.16MM
PDF
/
Buying Options
Total Price: USD $97.32
Unit Price: USD $97.318713
≥1 USD $97.318713
≥200 USD $38.831643
≥500 USD $37.533185
≥1000 USD $36.89249
Inventory: 8292
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 41.5mm
Length 91.3mm
Height 27.8mm
Technical
Screw Size M4
Number of Positions Per Level 9
Current - IEC 76A
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 9
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Wire Gauge or Range - AWG 6-20 AWG
Number of Decks 1
Voltage - UL 600V
Contact Mating Finish Silver
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 6 AWG
Current 55A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 76A
Insulation Height 1.094 27.80mm
Pitch 0.400 10.16mm
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PC
Published 2004
Packaging Bulk
Physical
Weight 78.90999g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
