1967401
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

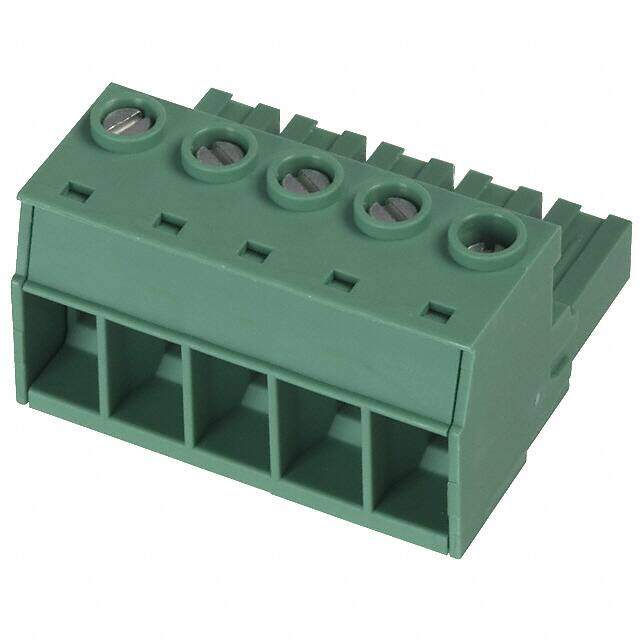

TERM BLOCK PLUG 5POS STR 10.16MM
PDF
/
Buying Options
Total Price: USD $22.32
Unit Price: USD $22.3168
≥1 USD $22.3168
≥10 USD $21.71136
≥100 USD $20.29104
≥500 USD $18.667792
≥1000 USD $17.247402
≥3000 USD $16.435813
Inventory: 143
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M4
Current - IEC 76A
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 5
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 6-20 AWG
Number of Decks 1
Contact Mating Finish Silver
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 6 AWG
Current 55A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 76A
Insulation Height 1.094 27.80mm
Pitch 0.400 10.16mm
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Number of Rows 1
Color Green
Number of Positions 5
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PC
Published 2004
Packaging Bulk
Physical
Weight 44.699997g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
