1967391
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

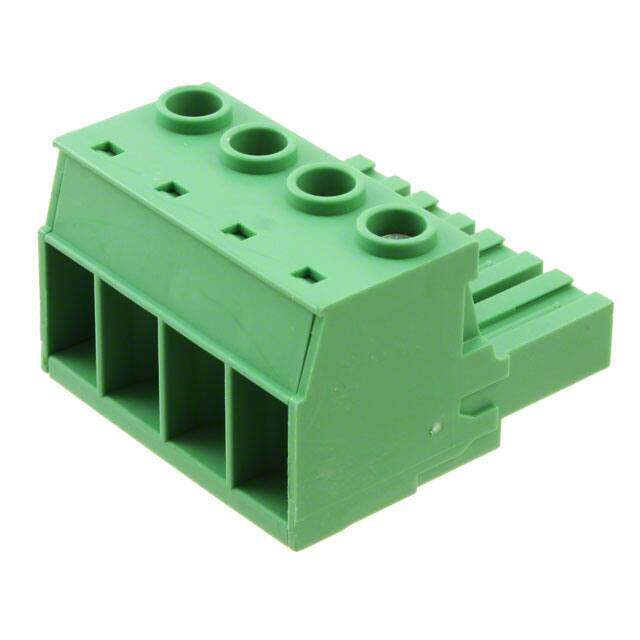

TERM BLOCK PLUG 4POS STR 10.16MM
PDF
/
Buying Options
Total Price: USD $17.87
Unit Price: USD $17.8728
≥1 USD $17.8728
≥10 USD $17.38968
≥100 USD $16.25184
≥500 USD $14.951728
≥1000 USD $13.814064
≥3000 USD $13.164043
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 41.5mm
Length 41.5mm
Height 27.8mm
Technical
Stripping Length 14mm
Screw Size M4
Number of Positions Per Level 4
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 4
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 6-20 AWG
Number of Decks 1
Wire Gauge (Min) 6 AWG
Wire Gauge (Max) 20 AWG
Current 55A
Number of Levels 1
Max Current Rating 76A
Voltage 600V
Approval Agency CB, UL
Termination Style Screw - Rising Cage Clamp
Current Rating 76A
Insulation Height 1.094 27.80mm
Depth 27.8mm
Orientation Right Angle
Pitch 0.400 10.16mm
Voltage - Rated 1kV
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PC
Published 2004
Packaging Bulk
Physical
Weight 34.990002g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Plug-In
Contact Plating Silver
Supply Chain
Factory Lead Time 7 Weeks
