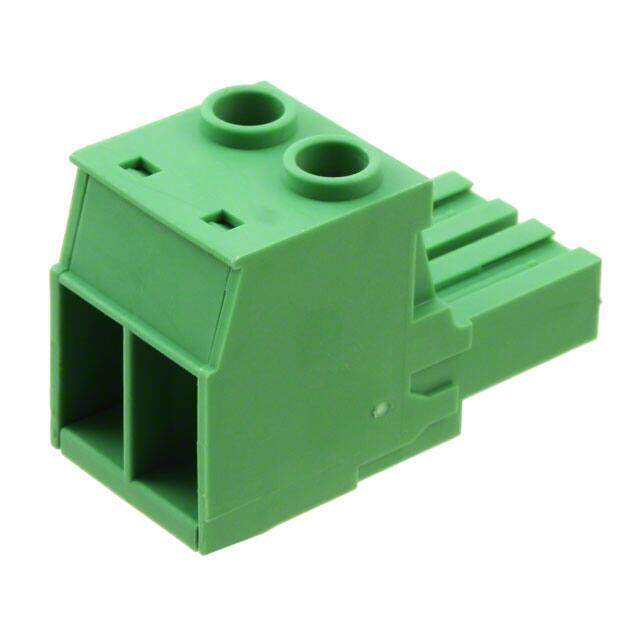

1967375 image
Favorite
1967375 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Block F 2 POS 10.16mm Screw RA Cable Mount 76A
PDF
/
Buying Options
Total Price: USD $8.94
Unit Price: USD $8.9408
≥1 USD $8.9408
≥10 USD $8.6944
≥100 USD $8.12592
≥500 USD $7.475864
≥1000 USD $6.90705
≥3000 USD $6.58203
Inventory: 1012
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Silver
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 18.929997g

Technical

Packaging Bulk
Published 2004
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Orientation Right Angle
Depth 27.8mm
Insulation Height 1.094 27.80mm
Current Rating 76A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, UL
Voltage 600V
Max Current Rating 76A
Number of Levels 1
Current 55A
Wire Gauge (Max) 6 AWG
Wire Gauge (Min) 18 AWG
Number of Decks 1
Wire Gauge or Range - AWG 6-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 12mm
Number of Positions Per Level 2
Screw Size M4
Stripping Length 14mm

Dimensions

Height 27.8mm
Length 41.5mm
Width 41.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
