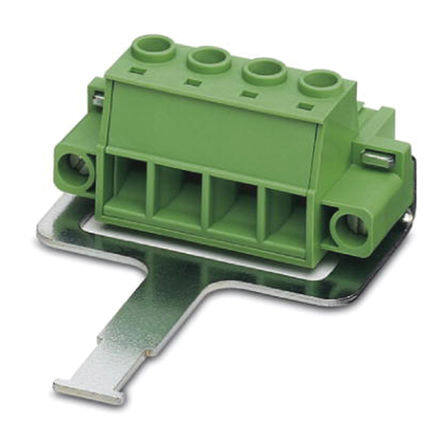

1966431
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 10.16mm pitch Plug 18-8 AWG Screw
PDF
/
Inventory: 1144
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2011
Series COMBICON PC
Feature Mating Flange, Strain Relief
Pbfree Code yes
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 50A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 8 AWG
Contact Mating Finish Silver
Voltage - UL 600V
Number of Decks 1
Wire Gauge or Range - AWG 8-20 AWG
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 4
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-10mm2
Wire Strip Length 12mm
Current - IEC 41A
Number of Positions Per Level 4
Screw Size M4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
