RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

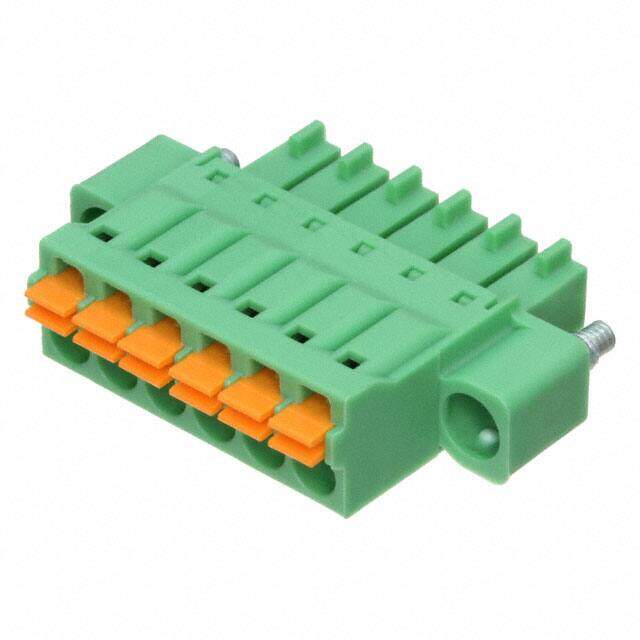

Description Pluggable Terminal Blocks 6 Pos 3.5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $4.66
Unit Price: USD $4.6552
≥1 USD $4.6552
≥10 USD $4.52496
≥100 USD $4.22928
≥500 USD $3.89092
≥1000 USD $3.818109
Inventory: 239
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 31.3mm
Length 7.8mm
Height 22.9mm

Technical

Fastening Method SPRING LOADED
Number of Positions Per Level 6
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 6
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 8A
Number of Levels 1
Voltage 150V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Insulation Height 0.307 7.80mm
Depth 7.8mm
Pitch 0.138 3.50mm
Additional Feature PA, UL 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON FMC
Published 2003
Packaging Bulk

Physical

Weight 89.000011g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
