1963722
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

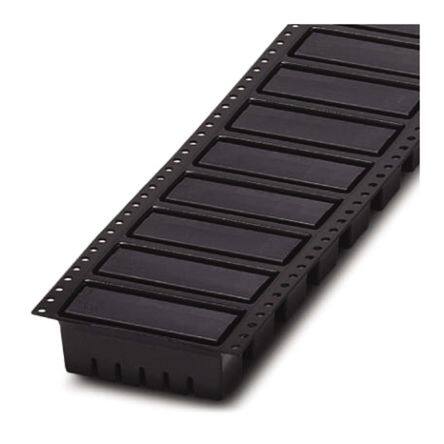

MICRO-COMBICON MC RoHS Compliant 2003 Tin Terminal Block Header, Male Pins, Shrouded (4 Side) UL94V-0 90° Right Angle 4A 125V
PDF
/
Inventory: 1137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 77.999999g
Technical
Packaging Tape & Reel (TR)
Published 2003
Series MICRO-COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 32V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Insulation Height 0.319 8.10mm
Current Rating 4A
Termination Style Solder
Voltage 125V
Contact Tail Length 0.150 3.81mm
Number of Levels 1
Current 4A
Contact Mating Finish Tin
Voltage - UL 125V
Number of Decks 1
Voltage - IEC 160V
Number of Ways 10
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 10
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
