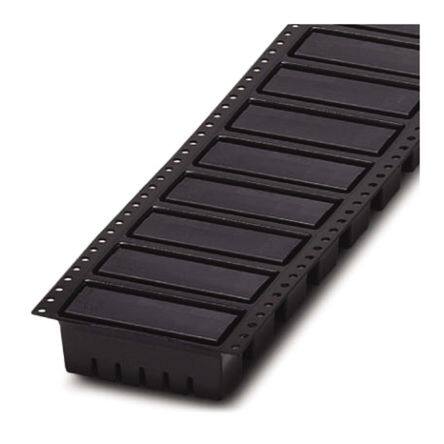

1963719
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Inventory: 1258
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 77.999999g
Technical
Packaging Tape & Reel (TR)
Published 2010
Series MICRO-COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 32V
Pitch 0.098 2.50mm
Orientation Right Angle
Depth 10.1mm
Insulation Height 0.319 8.10mm
Current Rating 4A
Termination Style Solder
Voltage 125V
Contact Tail Length 0.150 3.81mm
Max Current Rating 4A
Number of Levels 1
Current 4A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 160V
Number of Ways 9
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 9
Dimensions
Length 24.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
