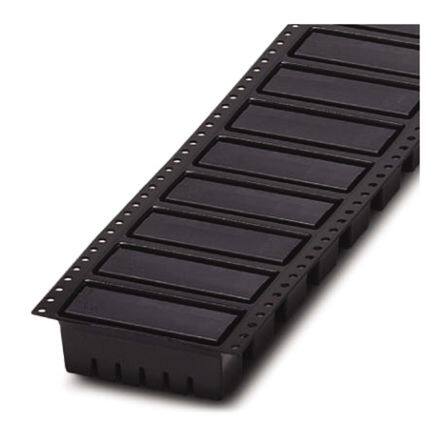

1963696
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 7 Pos 2.5mm pitch Through Hole Header
PDF
/
Inventory: 1194
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 7
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 7
Voltage - IEC 160V
Number of Decks 1
Voltage - UL 125V
Contact Mating Finish Tin
Current 4A
Number of Levels 1
Contact Tail Length 0.150 3.81mm
Voltage 125V
Termination Style Solder
Current Rating 4A
Insulation Height 0.319 8.10mm
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 32V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MC
Published 2003
Packaging Tape & Reel (TR)
Physical
Weight 77.999999g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
