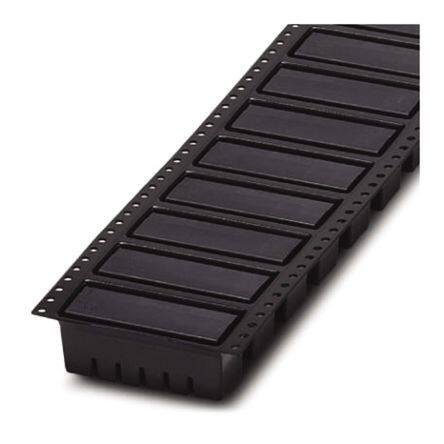

1963654
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.641766
≥1 USD $2.641766
≥10 USD $2.492235
≥100 USD $2.351161
≥500 USD $2.218078
≥1000 USD $2.092527
Inventory: 7937
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 77.999999g
Technical
Packaging Tape & Reel (TR)
Published 2003
Series MICRO-COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 32V
Additional Feature PA, 94V-0
Pitch 0.098 2.50mm
Insulation Height 0.319 8.10mm
Current Rating 4A
Termination Style Solder
Voltage 125V
Contact Tail Length 0.150 3.81mm
Number of Levels 1
Current 4A
Contact Mating Finish Tin
Voltage - UL 125V
Number of Decks 1
Voltage - IEC 160V
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 3
Dimensions
Height 8.1mm
Length 10.1mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
