1963609
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

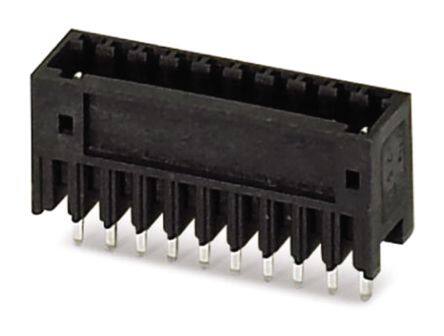

Pluggable Terminal Blocks 9 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.89
Unit Price: USD $3.885768
≥1 USD $3.885768
≥10 USD $3.665817
≥100 USD $3.458315
≥500 USD $3.262563
≥1000 USD $3.077893
Inventory: 3829
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 76.999998g
Technical
Packaging Bulk
Published 2011
Series MICRO-COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 32V
Pitch 0.098 2.50mm
Depth 8.1mm
Insulation Height 0.398 10.11mm
Current Rating 4A
Termination Style Solder
Voltage 125V
Contact Tail Length 0.138 3.50mm
Max Current Rating 4A
Number of Levels 1
Current 4A
Contact Mating Finish Tin
Voltage - UL 125V
Number of Decks 1
Voltage - IEC 160V
Number of Ways 9
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 9
Fastening Method CONNECTOR
Dimensions
Length 24.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
