1963586
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

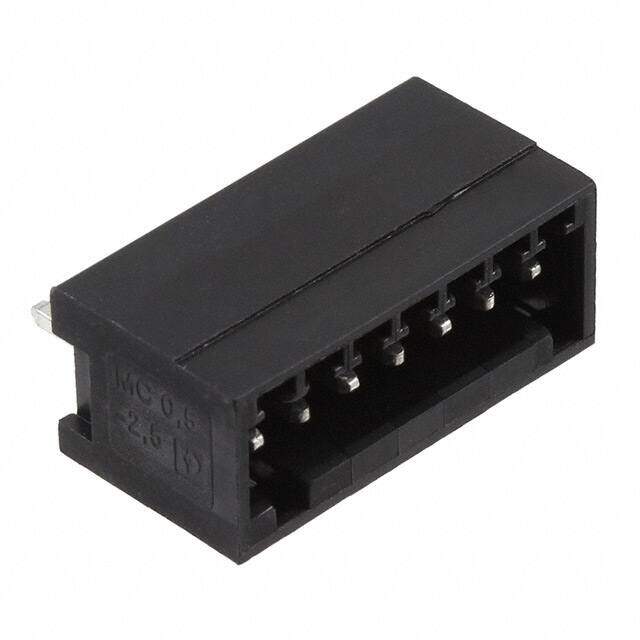

Pluggable Terminal Blocks 7 Pos 2.5mm pitch Through Hole Header
PDF
/
Inventory: 1129
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 7
Header Orientation Vertical
Safety Approval UL
Number of Ways 7
Voltage - IEC 160V
Number of Decks 1
Voltage - UL 125V
Contact Mating Finish Tin
Current 4A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 125V
Termination Style Solder
Current Rating 4A
Reach Compliance Code unknown
Insulation Height 0.398 10.11mm
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 32V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MCV
Published 2003
Packaging Bulk
Physical
Weight 76.999998g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
