1963560
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

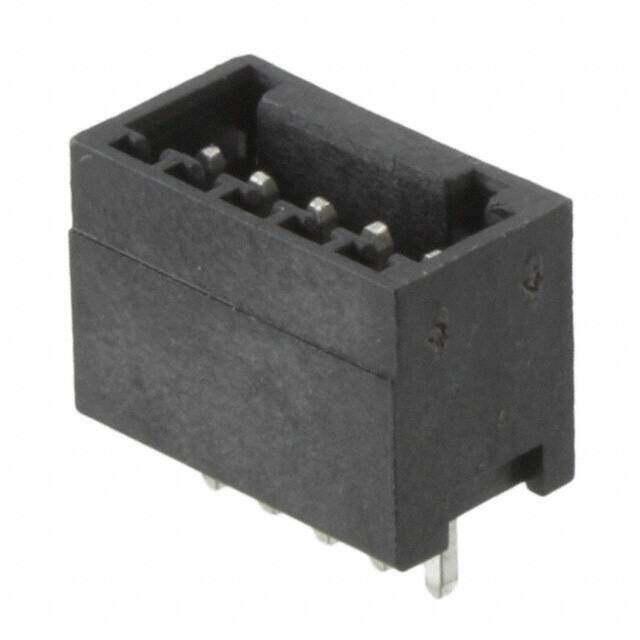

Pluggable Terminal Blocks 5 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.85
Unit Price: USD $1.848
≥1 USD $1.848
≥10 USD $1.79696
≥100 USD $1.67904
≥500 USD $1.544752
≥1000 USD $1.515782
Inventory: 137
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 76.999998g
Technical
Packaging Bulk
Published 2015
Series MICRO-COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 32V
Additional Feature PA, 94V-0
Pitch 0.098 2.50mm
Depth 8.1mm
Insulation Height 0.398 10.11mm
Current Rating 4A
Termination Style Solder
Voltage 125V
Contact Tail Length 0.138 3.50mm
Max Current Rating 4A
Number of Levels 1
Current 4A
Contact Mating Finish Tin
Voltage - UL 125V
Number of Decks 1
Voltage - IEC 160V
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 5
Fastening Method CONNECTOR
Dimensions
Length 14.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
