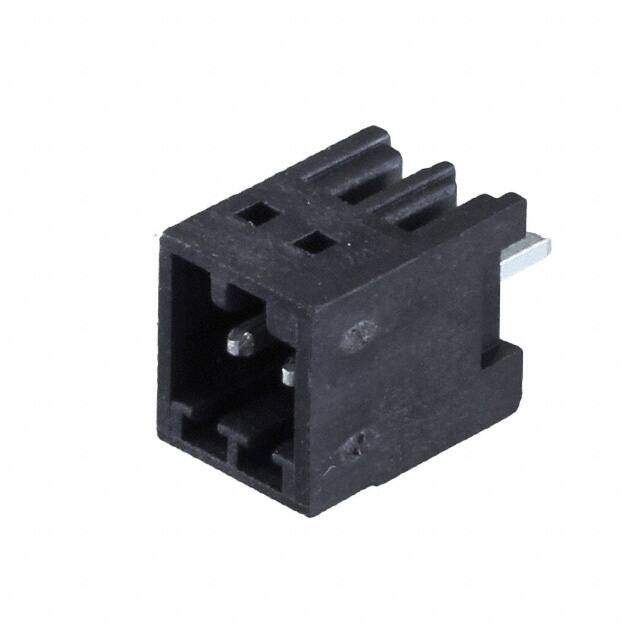

1963531 image
Favorite
1963531 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal block; PCB; Header; Male Pins; Shrouded (4 Side); 2 position; 4A; 160V; Solder
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.7832
≥1 USD $0.7832
≥10 USD $0.76296
≥100 USD $0.7128
≥500 USD $0.655776
≥1000 USD $0.643491
Inventory: 105
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 13.6mm
Length 6.9mm
Height 8.1mm

Technical

Fastening Method CONNECTOR
Number of Positions Per Level 2
Header Orientation Vertical
Safety Approval UL
Number of Ways 2
Voltage - IEC 160V
Number of Decks 1
Voltage - UL 125V
Current 4A
Number of Levels 1
Max Current Rating 4A
Contact Tail Length 0.138 3.50mm
Voltage 125V
Termination Style Solder
Current Rating 4A
Insulation Height 0.398 10.11mm
Depth 8.1mm
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 32V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MCV
Published 2011
Packaging Bulk

Physical

Weight 76.999998g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
