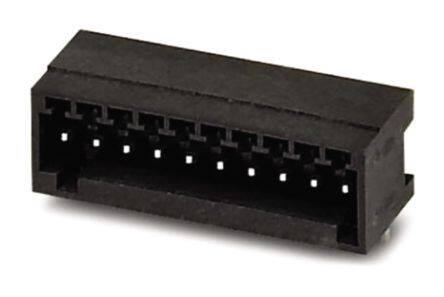

1963502 image
Favorite
1963502 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Shrouded Header HDR 10 POS 2.5mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $4.42
Unit Price: USD $4.423221
≥1 USD $4.423221
≥10 USD $4.17284
≥100 USD $3.936643
≥500 USD $3.713815
≥1000 USD $3.503607
Inventory: 2028
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 10.1mm
Height 8.1mm

Technical

Fastening Method CONNECTOR
Number of Positions Per Level 10
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 10
Voltage - IEC 160V
Number of Decks 1
Contact Mating Finish Tin
Current 4A
Number of Levels 1
Max Current Rating 4A
Voltage 125V
Termination Style Solder
Current Rating 4A
Insulation Height 0.319 8.10mm
Depth 10.1mm
Orientation Right Angle
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 32V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MC
Published 2003
Packaging Bulk

Physical

Weight 76.999998g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 6 Weeks
