1963450
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

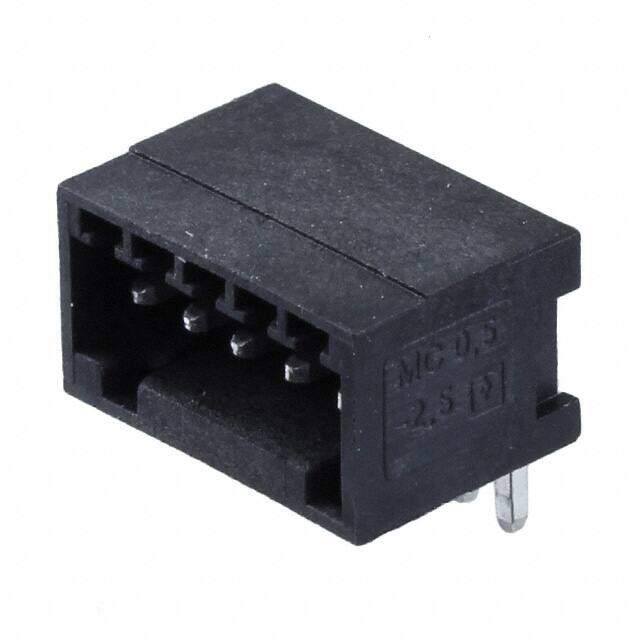

Pluggable Terminal Blocks 5 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.7864
≥1 USD $1.7864
≥10 USD $1.73712
≥100 USD $1.6236
≥500 USD $1.493712
≥1000 USD $1.465763
Inventory: 121
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 14.4mm
Length 14.4mm
Height 11.9mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 5
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 5
Voltage - IEC 160V
Number of Decks 1
Current 4A
Number of Levels 1
Max Current Rating 4A
Voltage 125V
Termination Style Solder
Current Rating 4A
Insulation Height 0.319 8.10mm
Depth 10.1mm
Orientation Right Angle
Pitch 0.098 2.50mm
Additional Feature PA, 94V-0
Voltage - Rated 32V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MC
Published 2012
Packaging Bulk
Physical
Weight 76.999998g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 6 Weeks
