1963447
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

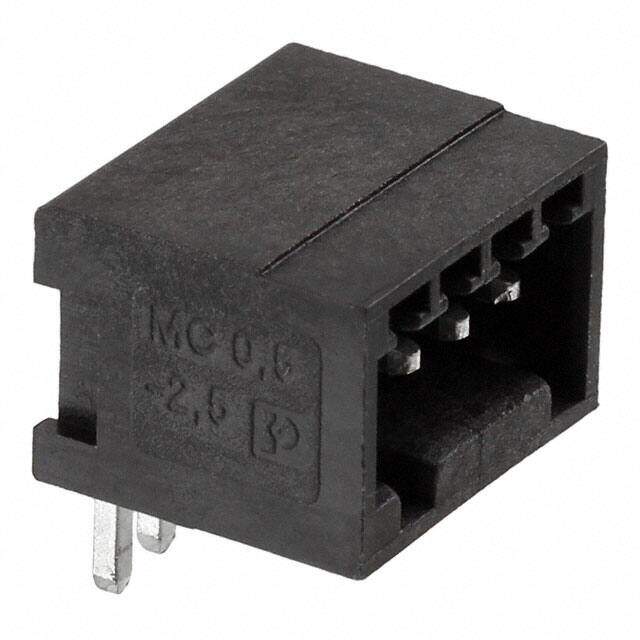

Terminal block; PCB; Header; Male Pins; Shrouded (4 Side); 4 position; 4A; 160V; Solder
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
≥10 USD $1.40712
≥100 USD $1.31472
≥500 USD $1.20956
≥1000 USD $1.186909
Inventory: 469
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 11.9mm
Length 11.9mm
Height 11.9mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 4
Voltage - IEC 160V
Number of Decks 1
Current 4A
Number of Levels 1
Max Current Rating 4A
Voltage 125V
Termination Style Solder
Current Rating 4A
Insulation Height 0.319 8.10mm
Depth 10.1mm
Orientation Right Angle
Pitch 0.098 2.50mm
Voltage - Rated 32V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MICRO-COMBICON MC
Published 2003
Packaging Bulk
Physical
Weight 3.510011g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 6 Weeks
