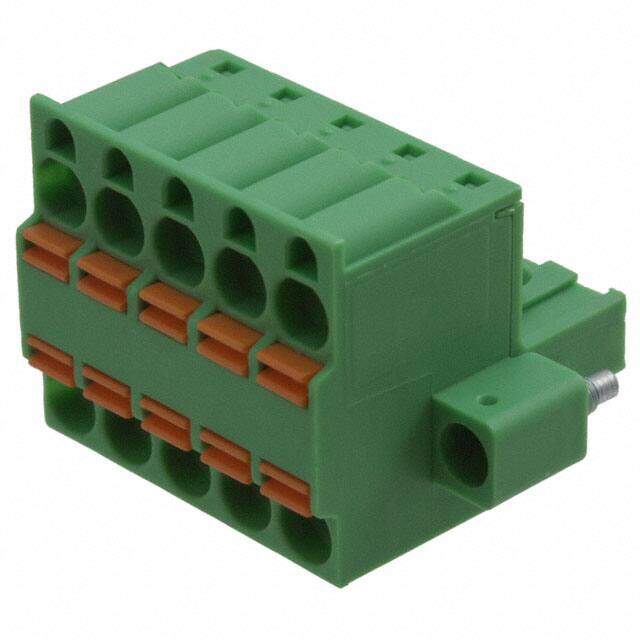

1962723
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 10 POS 5.08mm ST Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $11.11
Unit Price: USD $11.1056
≥1 USD $11.1056
≥10 USD $10.80464
≥100 USD $10.098
≥500 USD $9.29016
≥1000 USD $9.116237
Inventory: 90
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 143.000013g
Technical
Packaging Bulk
Published 2002
Series COMBICON TFKC
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 5
Color Green
Number of Rows 2
Gender Female
Voltage - Rated 320V
Additional Feature PA, UL 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 25.7mm
Insulation Height 0.870 22.10mm
Current Rating 12A
Termination Style Screwless - Push-In Spring
Number of Contacts 10
Voltage 300V
Max Supply Voltage 320V
Max Current Rating 12A
Number of Levels 1 (Mate), 2 (Input)
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Positions Per Level 5 (Mate), 10 (Input)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Fastening Method SPRING LOADED
Dimensions
Height 25.7mm
Length 60.92mm
Width 35.52mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
