1962590
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

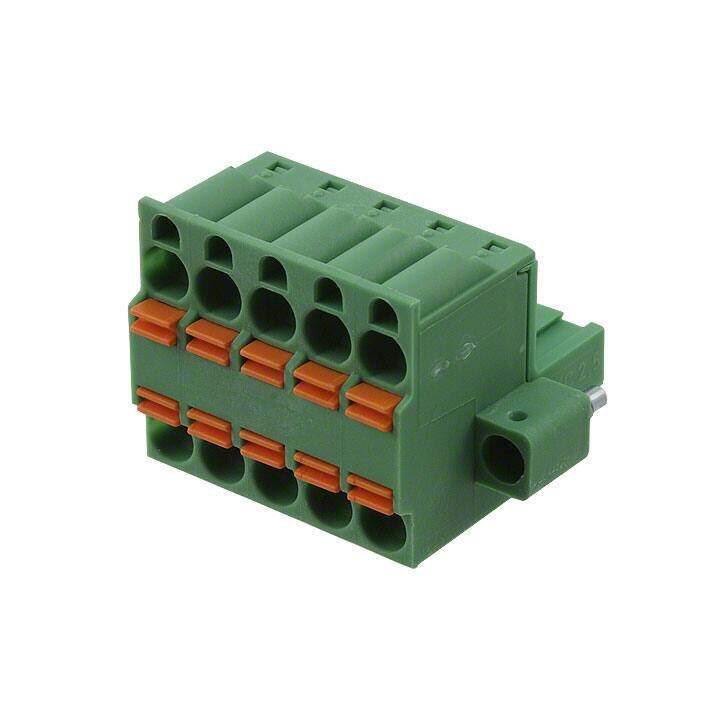

Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $17.2
Unit Price: USD $17.1952
≥1 USD $17.1952
≥10 USD $16.7288
≥100 USD $15.63408
≥500 USD $14.383424
≥1000 USD $14.114109
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 143.000013g
Technical
Packaging Bulk
Published 2011
Series COMBICON TFKC
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 320V
Pitch 0.200 5.08mm
Insulation Height 0.870 22.10mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1 (Mate), 2 (Input)
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Positions Per Level 5 (Mate), 10 (Input)
Number of Ways 5
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Fastening Method SPRING LOADED
Dimensions
Height 25.7mm
Length 22.1mm
Width 35.52mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
