1962037
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

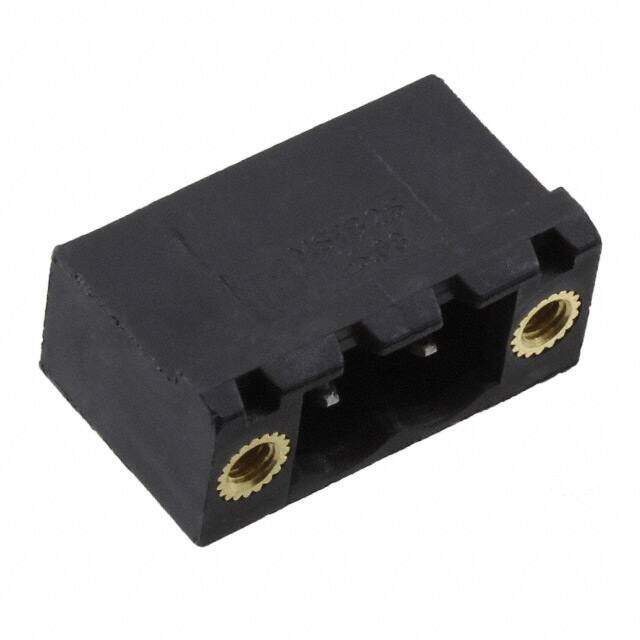

TERM BLOCK HDR 2POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $1.74
Unit Price: USD $1.7424
≥1 USD $1.7424
Inventory: 137
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Header Orientation 90°, Right Angle
Safety Approval CB; CCA; CSA; CUL; UL; VDE
Number of Ways 2
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature SAFETY APPROVAL: EAC
Voltage - Rated 250V
Number of Rows 1
Color Black
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON MSTB
Published 2010
Packaging Bulk
Physical
Weight 2.240009g
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
