1962024
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

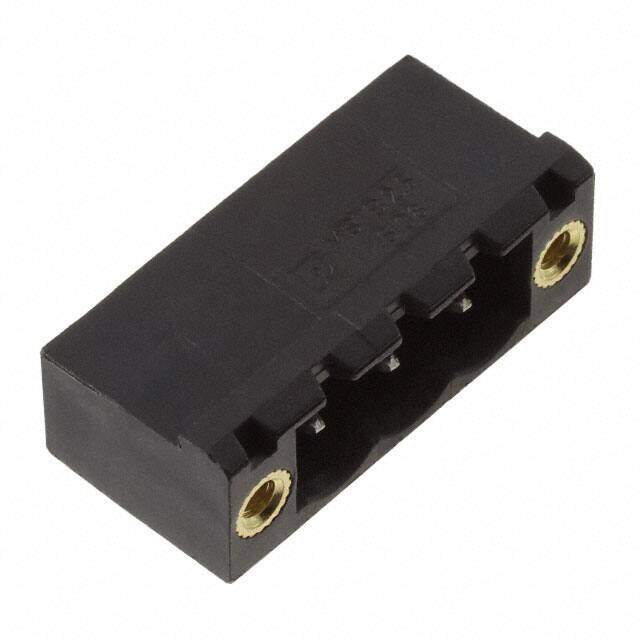

Connector; PCB header; 12A; 320V; 3positions; MSTB 2 5/ 3-GF-5 08 BK
PDF
/
Buying Options
Total Price: USD $2.02
Unit Price: USD $2.024
≥1 USD $2.024
Inventory: 67
Minimum: 1
-
+
Technical Details
Technical
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.339 8.61mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Black
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON MSTB
Published 2011
Packaging Bulk
Number of Positions Per Level 3
Header Orientation 90°, Right Angle
Voltage - IEC 400V
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
