1961782
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

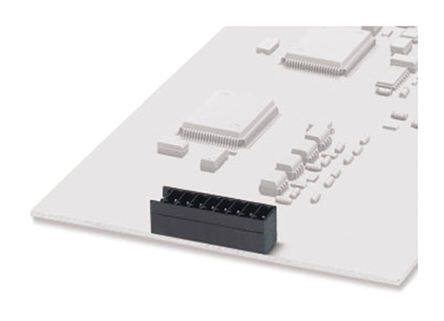

COMBICON MCV RoHS Compliant 2002 CONNECTOR Terminal Block Header, Male Pins, Shrouded (3 Side) UL94V-0 Vertical 8A 300V
PDF
/
Inventory: 1195
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 96.999991g
Technical
Packaging Bulk
Published 2002
Series COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (3 Side)
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 7
Safety Approval UL
Header Orientation Vertical
Current - IEC 8A per Position
Number of Positions Per Level 7
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
