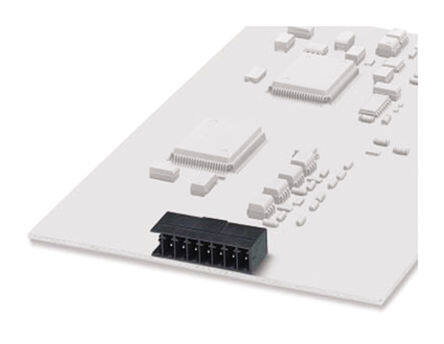

1961737 image
Favorite
1961737 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON MC RoHS Compliant 2002 CONNECTOR Terminal Block Header, Male Pins, Shrouded (3 Side) 90° Right Angle 8A 300V 0.285 7.25mm
PDF
/
Inventory: 1155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 95.99999g

Technical

Packaging Bulk
Published 2002
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (3 Side)
Color Black
Number of Rows 1
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.285 7.25mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 9
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 8A per Position
Number of Positions Per Level 9
Fastening Method CONNECTOR

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
