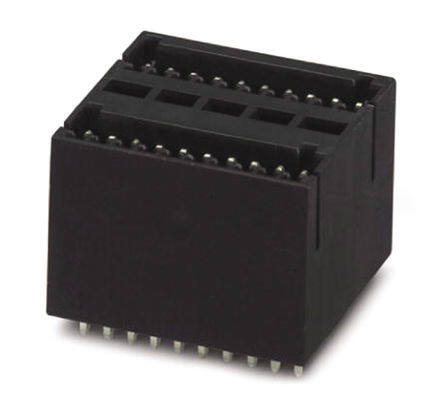

1961326
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 2.5mm pitch Through Hole Header
PDF
/
Inventory: 1088
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 79g
Technical
Packaging Bulk
Published 2002
Series MICRO-COMBICON MCD
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 20
Color Black
Number of Rows 1
Voltage - Rated 32V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Insulation Height 0.689 17.50mm
Current Rating 4A
Termination Style Solder
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 160V
Positions Per Level 10
Number of Ways 10
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 10
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
